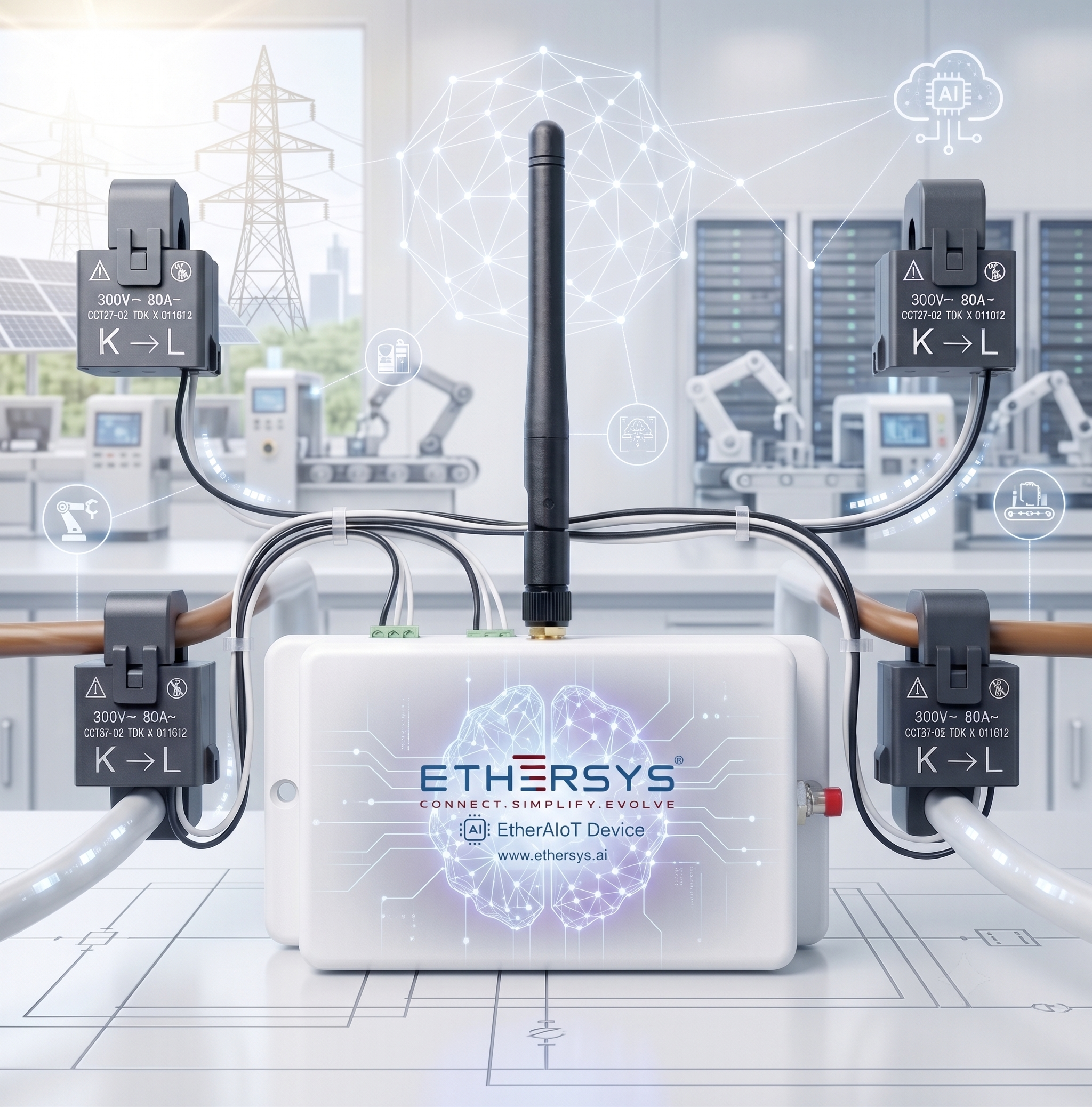

ED111 Series
3-phase energy metering data loggers for industrial energy monitoring. Supports optional integrated displays (2.4" to 4") and multiple connectivity options.
Overview
The ED111 series combines accurate 3-phase energy metering with cloud connectivity. Ideal for energy-intensive industries, these devices provide real-time kWh data, power factor correction insights, and per-phase analysis — all streamed to EtherAIoT for dashboards, alerts, and AI-driven energy optimisation.
Why Choose This Device?
Accurate Metering
Class 1 accuracy with per-phase granularity for precision billing and monitoring.
DIN-Rail Ready
Standard DIN-rail mount with Modbus RTU for seamless BMS integration.
Cloud Insights
AI-powered energy analytics reduce utility costs by up to 30%.
Optional Display
On-site readout without a separate HMI investment, with 2.4" to 4" display options.
Applications
Real-world deployments across industries.
Industrial Plant Metering
Sub-meter individual machines and production lines to identify energy hogs.
Commercial Building
Tenant sub-metering and energy billing in multi-tenant office buildings.
Solar & Renewable
Monitor PV generation and grid import/export for net metering.
Data Centre PUE
Track PUE (Power Usage Effectiveness) and cooling efficiency.
Features
3-Phase Metering
Accurate measurement of Voltage, Current, Power, and Energy per phase.
Optional Display
2.4" to 4" integrated display for on-site readouts without additional equipment.
Cloud Analytics
Energy dashboards, cost tracking, and peak demand alerts via EtherAIoT Suite.
Modbus RTU
Standard DIN-rail compatible with BMS/SCADA via Modbus RTU protocol.
EtherAIoT Architecture
Continuous Energy Monitoring from Edge to Cloud
System Architecture Diagram
FAQ
Via external CT (Current Transformers), the device supports up to 3000A, with CT ratio configurable in software.
